TRA001

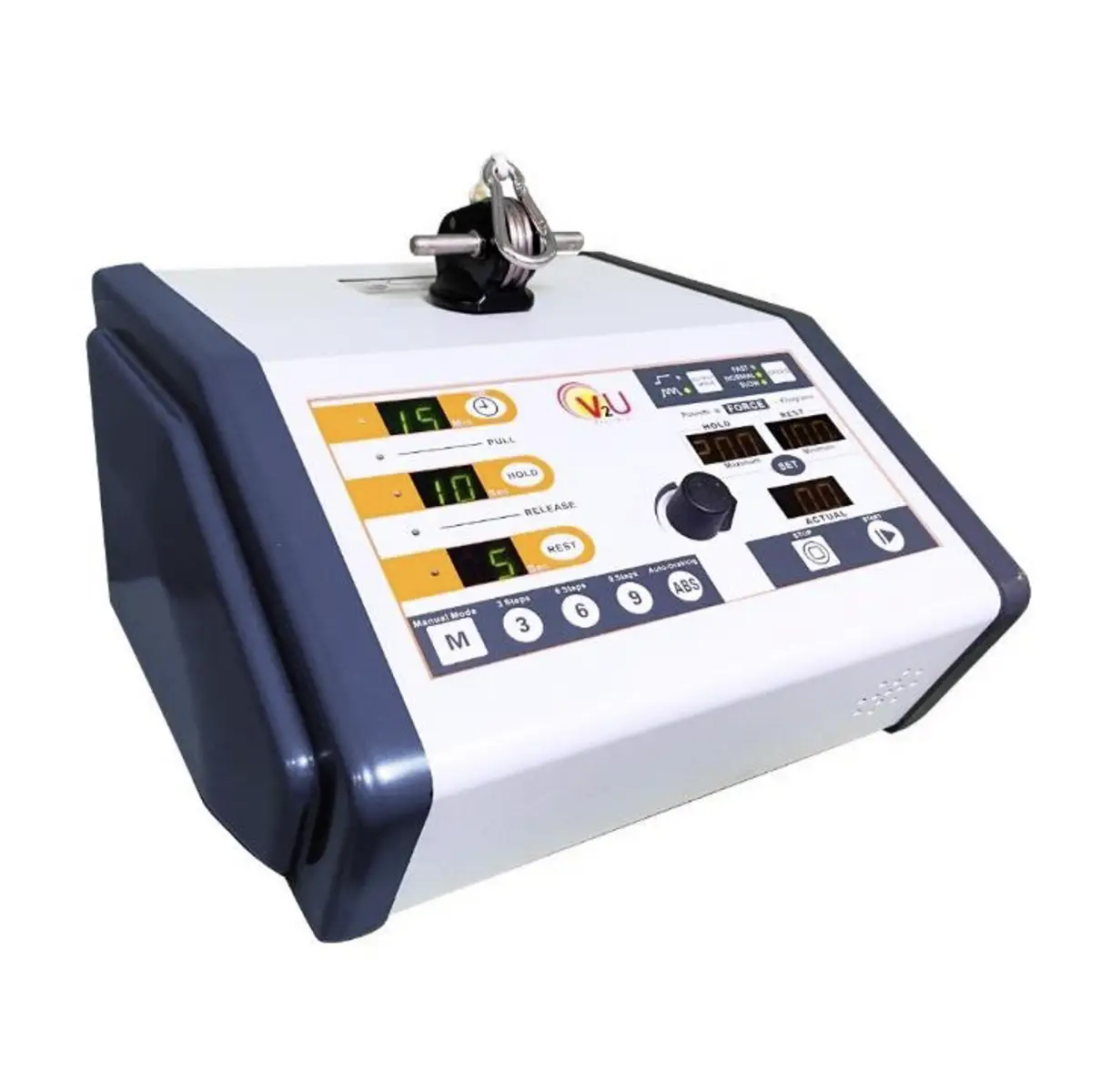

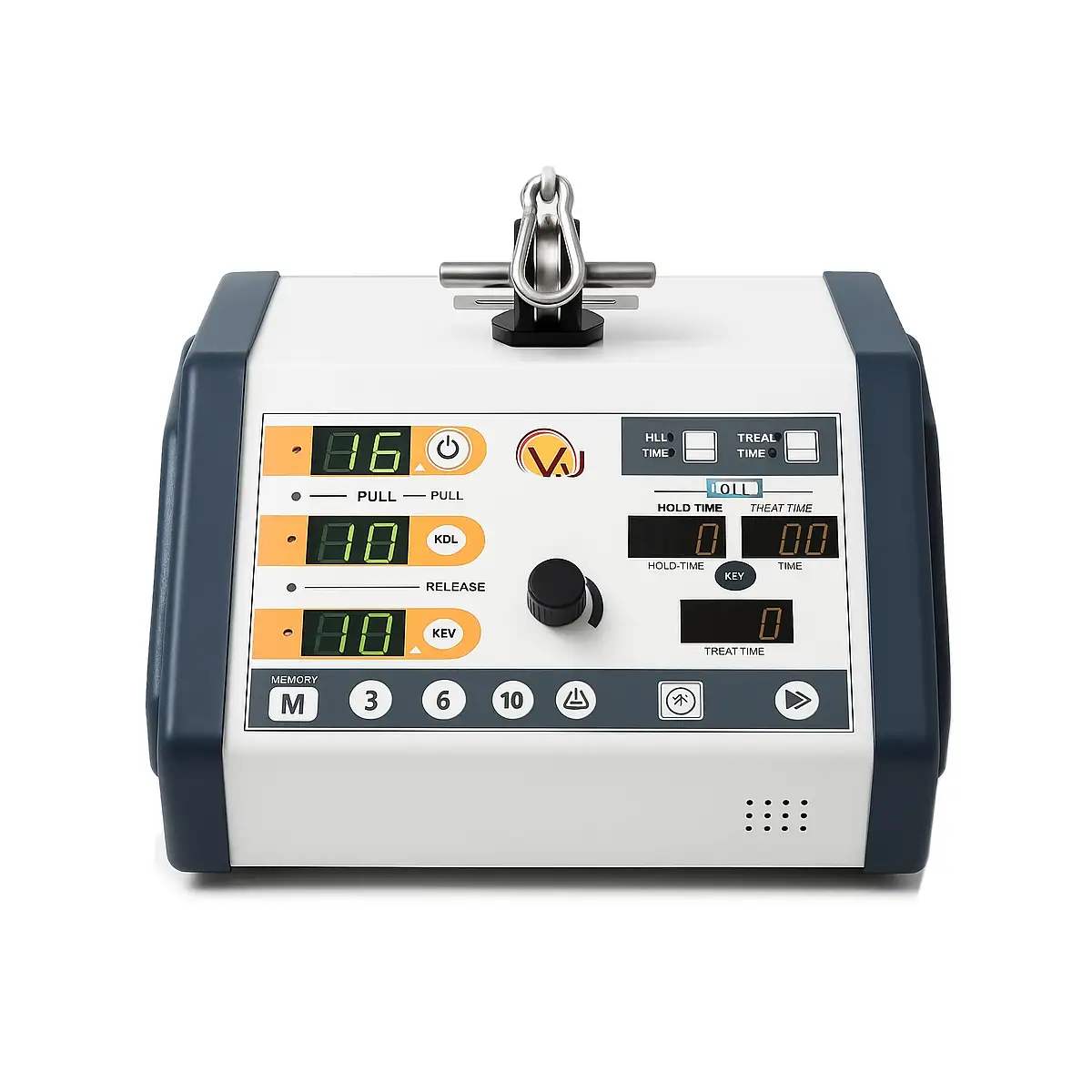

What sets the Traction Machine TDM apart is its intelligent traction decompression system, which incorporates advanced features such as manual distraction control, step progression and regression programming, and a smooth auto-slowing function.
These features allow for gradual, controlled application of traction forces, reducing the risk of discomfort and improving treatment outcomes. Built with multiple safety mechanisms and high-strength components, the device ensures reliable performance while supporting clinicians with real-time feedback and treatment monitoring.
The result is a highly versatile solution that balances clinical effectiveness with patient safety and ease of use.
Specification
| Dimensions | L 37 cm × W 30 cm × D 22 cm |
| Weight | 14.5 kg |
| Maximum Output Force | 198 lb / 90 kg |
| Output Force Tolerances | 1.8–20 kg: ±0.9 kg 20–50 kg: ±1.3 kg 50–90 kg: ±1.8 kg |
| Traction Speed | Fast: 5–6s to 90 kg (<10s) Normal: 12–15s to 90 kg (<20s) Slow: 22–25s to 90 kg (<30s) |
| Treatment Time (Hold/Rest) | 1–99 minutes |
| Treatment Modes | Continuous / Intermittent |
| Patient Safety Switch | 2-pin connector |
Key Features
- ser-friendly interface with active digital displays for all treatment parameters
- Static and intermittent traction modes with multiple speed selections
- Adjustable hold/rest and treatment times (1–99 seconds)
- Manual control mode for clinician-directed therapy
- Step progression and regression settings
- Auto-slowing feature for smooth, quiet operation
- High-strength traction rope for durability
- Compatible with most existing table platforms
- Up to 10 treatment setups can be stored for convenience
- Integrated patient safety switch and multiple sensor controls
